XFX AMD Radeon RX 9070 XT Swift Pro Gaming 16GB GDDR6 - A - Premium Edition
XFX AMD Radeon RX 9070 XT Swift Pro Gaming 16GB GDDR6 - A - Premium Edition
Product Description -
Summary - Great condition, with the box. Specifications below -
Graphics Processor
- GPU Name
- Navi 48
- GPU Variant
- Navi 48 XT
(215-176600331)
- Architecture
- RDNA 4.0
- Foundry
- TSMC
- Process Type
- N4P FinFET
- Process Size
- 5 nm
- Transistors
- 53,900 million
- Density
- 151.0M / mm²
- Die Size
- 357 mm²
- Chip Package
- Monolithic
Graphics Card
Clock Speeds
- Base Clock
- 1330 MHz
- Game Clock
- 2070 MHz
- Boost Clock
- 2520 MHz
- Memory Clock
- 2518 MHz
20.1 Gbps
Memory
- Memory Size
- 16 GB
- Memory Type
- GDDR6
- Memory Bus
- 256 bit
- Bandwidth
- 644.6 GB/s
Render Config
- Shading Units
- 3584
- TMUs
- 224
- ROPs
- 128
- Compute Units
- 56
- Tensor Cores
- 112
- RT Cores
- 56
- L0 Cache
- 32 KB per WGP
- L2 Cache
- 8 MB
- L3 Cache
- 64 MB
Theoretical Performance
- Pixel Rate
- 322.6 GPixel/s
- Texture Rate
- 564.5 GTexel/s
- FP16 (half)
- 72.25 TFLOPS (2:1)
- FP32 (float)
- 36.13 TFLOPS
- FP64 (double)
- 1,129 GFLOPS (1:32)
Board Design
- Slot Width
- Dual-slot
- Length
- 280 mm
11 inches
- Width
- 120 mm
4.7 inches
- Height
- 52 mm
2 inches
- TDP
- 220 W
- Suggested PSU
- 550 W
- Outputs
-
1x HDMI 2.1b
3x DisplayPort 2.1a
2x HDMI 2.1b
2x DisplayPort 2.1a

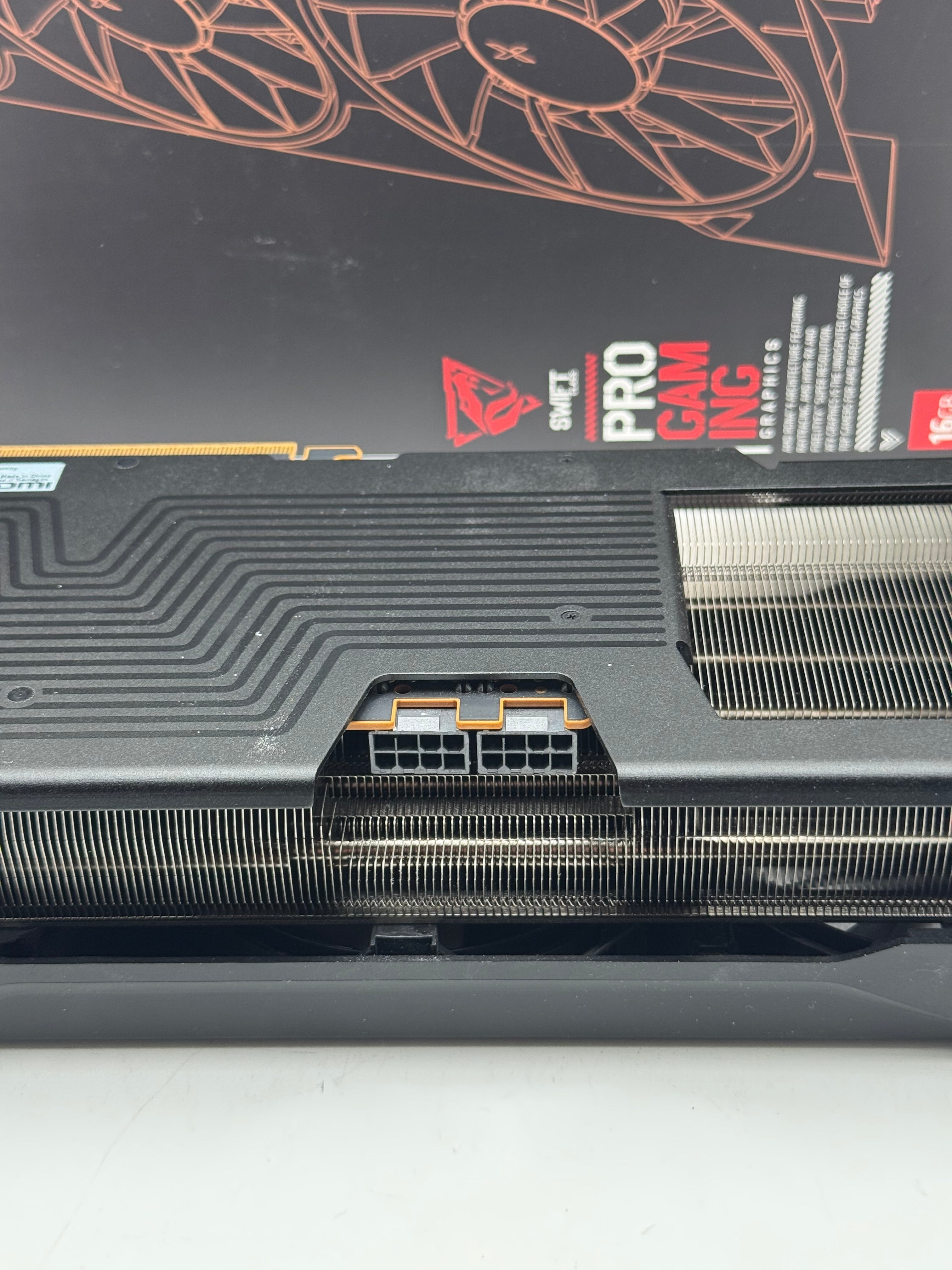

- Power Connectors
- 2x 8-pin
Graphics Features
- DirectX
- 12 Ultimate (12_2)
- OpenGL
- 4.6
- OpenCL
- 2.2
- Vulkan
- 1.3
- Shader Model
- 6.8
Navi 48 GPU Notes
| Generation: Navi IV Codename: Ray Tracing Cores: 3rd Gen Matrix Cores: 3rd Gen Infinity Cache: 3rd Gen Graphics/Compute: 12.0.1 Shader ISA: GFX12.0 (gfx1201) Display Core Next: 3.2.0 Video Core Next: 4.0.0 System DMA: 6.0.0 |
This card has passed several tests. These tests include - A 1 hour run on Furmark (for temperature readings and to ensure stability), one run on each of Unigene’s Heaven and Superposition benchmarks (for performance figures in relation to brand new models) and we only buy cards in once they’ve passed all 3 tests and remained below 75°C, even under the extremely high loads of a 1 hour Furmark test. Finally, we perform a visual check to ensure it’s in good enough aesthetic condition before we buy the product in. This insures we never have stock we’re not happy with, so you never have to worry when buying from us!
All our cards are in good working condition as explained above. However, if you receive your order and it unfortunately doesn’t work, don’t panic, we have a 30 day return window, with money back guarantee. All so you can enjoy the bargain without being worried about any issues.
Here's the GPUsed product grading system (currently only in place for GPUs)
A+ - New or Like new
A - Excellent / Very good for a used item (our most common grade)
B - Working (may have some cosmetic issues but won't affect performance)
C - Non working (we don't currently sell much non working hardware)
